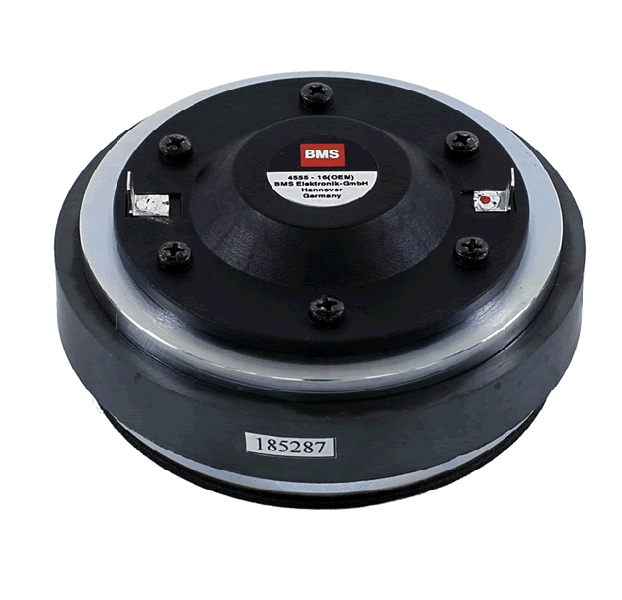

BMS 4555 1,5" High Frequency Compression Driver,
1,75" VC,
80 W AES,
113 dB
16 Ohm

Features:
•1.5" Driver for Budget Projects
•Unique patented Design
•113 dB sensitivity 1 W / 1 m
•1 kHz Crossover
•Extended high frequency response up to 20 kHz
•Very small Size and low Weight
•44.4 mm Voice Coil
•16 Ohm

BMS 4555 is a powerful 1.5" professional compression driver that delivers outstanding sonic quality in a small package. The BMS exclusive voice coil technology employs a light weight Copper Clad Aluminium wire wound inside and outside of the Kapton™ former to improve the heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimising the power compression.

The BMS 4555 - 1.5" compression driver is designed for a wide variety of applications including budget projects requiring 1.5" driver of high sonic quality. The 4555 offers all the benefits of the patented BMS compression driver in a 1.5" format, but at much reduced cost.

Specifications:
•Throat diameter: 1.5" (38 mm)
•Nominal impedance: 16 Ohm
•Power capacity (AES): 80 W
•Peak Power: 450 W
•Sensitivity 1 W / 1 m: 113 dB
•Efficiency: 25% (1000 - 3500 Hz)
•Maximal SPL (cont.): 132 dB at 80 W
•Frequency Range: 500 - 22000 Hz
•Recommended Crossover: 1000 Hz
•Voice Coil Diameter: 1.75" (44.4 mm)
•Magnet Material: Ferrite
•Flux Density (Tesla): 2
•Voice Coil Material: Copper Clad Aluminum
•Voice Coil Former: Kapton TM
•Diaphragm Material: Polyester

Mounting Information:
•Overall Diameter: 123 mm
•Depth: 52 mm
•Net Weight: 2.25 kg
•4 x M6 Holes, 90° on 101.6 mm, 4" Diameter
