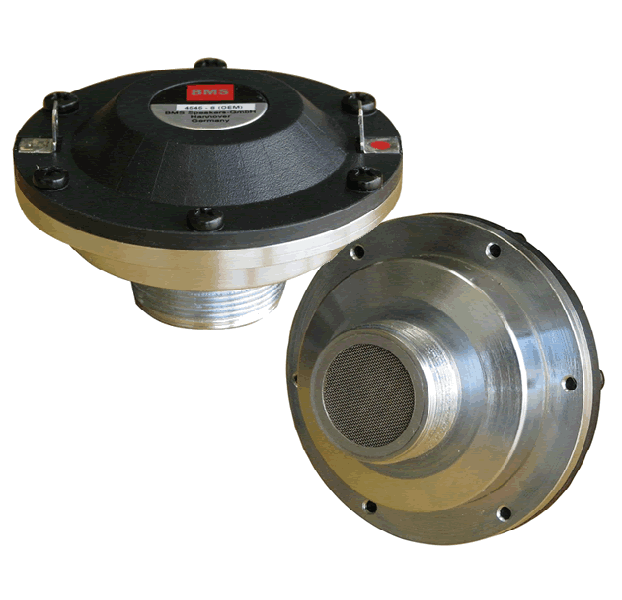

BMS 4545 1" Neodymium HF Comp Driver 1,75" VC, 80 W 113 dB, 1 3/8" - 18N Screw 16 Ohm

Features:
•Unique Patented Design
•Cost effective, high efficiency Neodymium Magnet Assembly
•113 dB Sensitivity 1 W / 1 m
•1.2kHzCrossover
•Extended high frequency response up to 20 kHz
•Very small Size and low Weight
•44.4 mm Sandwich in- and outside Voice Coil
•16 Ohm

BMS 4545ND is a powerful 1" professional compression driver that delivers superb sonic quality in a very small package. The unique BMS annular diaphragm together with the cost effective, high energy Neodymium magnet assembly offers an economical solution for a wide variety of high level professional reinforcement system applications.

BMS 4545ND achieves very high sensitivity and linear frequency response up to 20 kHz. The sound of BMS4545ND is extremely transparent and detailed, it has an exceptional dynamic range and produces even the most complex music signals with depth and definition.

Specifications:
•Throat diameter: 1" (25.4 mm)
•Nominal impedance: 16 Ohm
•Power capacity (AES): 80 W
•Peak Power: 450 W
•Sensitivity 1 W / 1 m: 113 dB
•Max. SPL (cont.): 132 dB at 80 W
•Frequency Range: 500 - 20000 Hz
•Recommended Crossover: 1900 Hz
•Voice Coil Diameter: 1.75" (44.4 mm)
•Magnet Material: Neodymium
•Flux Density (Tesla): 2.2
•Voice Coil Material: Copper Clad Aluminum
•Voice Coil Former: Kapton TM
•Diaphragm Material: Polyester

Mounting Information:
•Overall Diameter: 84 mm
•Depth: 48 mm
•Net Weight: 0.56 kg
•1 3/8" - 18N Screw
